JIC female straight
CNC machined straight female adapters in carbon steel/stainless steel, ideal for direct port connections in fluid power systems
- 产品描述
-

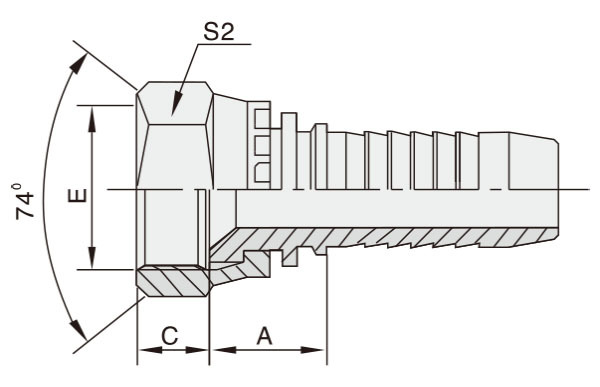

PART NUMBER THREADE HOSE BORE DIMENSIONS DASH A C S1 26711-04-03 7/16*X20 03 15.5 8.5 17 26711-04-04 7/16~X20 04 15.5 8.5 17 26711-05-05 1/2"X20 05 16 9.5 17 26711-06-05 9/16*X18 05 17 9.5 19 26711-06-06 9/16*X18 06 18 9.5 19 26711-08-06 3/4°X16 06 19 9.5 24 26711-08-08 3/4"X16 08 19 9.5 24 26711-10-10 7/8"X14 10 20 12.5 27 26711-12-10 1.1/16 X12 10 21 13.5 32 26711-12-12 1.1/16 X12 12 21 13.5 32 26711-12-16 1.1/16 X12 16 23 15 32 26711-16-12 1.5/16*X12 12 23 15 41 26711-16-16 1.5/16 X12 16 24.5 15 41 26711-20-16 1.5/8"X12 16 25.5 15.5 50 26711-20-20 1.5/8"X12 20 25.5 15.5 50 26711-24-20 1.7/8"X12 20 26 17 55 26711-24-24 1.7/8"X12 24 26 17 55 26711-32-32 2.1/2X12 32 29 23.5 75 Note:1.For use with braided hoses.
2.lf use with spiral hose,hose fitting series number is 26712-xx-xx.
