  • BSP female 45°.jpg

BSP female 45°

22641 Series Fittings 45 Degree BSP Female 60 CONE Hydraulic Hose Connector

Category:

  • 产品描述

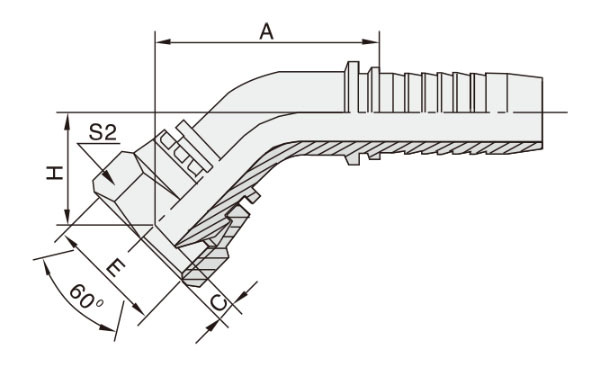

  • PART NUMBERTHREADEHOSE BOREDIMENSIONS
    DASHACHS2
    22641-04-04G1/4" X1904 41 5.5 20 19
    22641-04-05G1/4" X1905 41 5.5 20 19
    22641-04-06G1/4" X1906 41.5 5.5 21.5 19
    22641-06-04G3/8" X1904 42.5 6.5 22.5 22
    22641-06-05G3/8" X1905 43 6.5 22.5 22
    22641-06-06G3/8" X1906 50 6.5 23 22
    22641-08-08G1/2" X1408 50 23 27
    22641-10-08G5/8" X1408 51 24 27
    22641-10-10G5/8" X1410 64 8.5 25 27
    22641-12-10G3/4" X1410 64.4 10 25.4 32
    22641-12-12G3/4" X1412 70 10 27 32
    22641-16-12G1" X1112 71.5 11 28.5 41
    22641-16-16G1" X1116 87 11 41 41
    22641-20-20G1.1/4" X1120 105 11 47 50
    22641-24-24G1.1/2" X1124 11 12 50 55
    22641-32-32G2" X1132 181 14 61 70
    Note:1.For use with braided hoses
    2.If use with spiral hose,hose fitting series number is 22642-xx-xx.
