Anti Slip Pad For Drilling Platform
In the petroleum industry, the application of anti slip pads can not only effectively reduce accidents caused by workers slipping, but also improve work efficiency. Oil drilling, refining, and transportation often face factors such as oil and water stains that affect ground friction. The design of anti slip pads takes into account these special environments and uses high friction coefficient materials to ensure that workers can maintain a stable gait in various situations. In addition, the anti slip pad also has the characteristics of oil resistance and wear resistance, which can withstand the harsh working conditions of the petroleum industry.
Anti Slip Safety Floor Mat for Drill Rig Rotary Table
Anti slip mat Support customization/Anti slip Rotary Table mats
Anti slip mat Support customization/Rig Safety Rotary Table Mats
Setback area anti slip mats/Drill Floor Mat
What are the characteristics and applications of anti-skid mats in the petroleum industry?
Key Features [Rotating table anti slip pad]
Applications [Setback Area Anti Slip Mat]
● High traction surface – Prevent slips and falls
● Rotary Tables
● High wear resistant
● Drill Floors/Decking Areas
● Discharge water & oil in time
● Monkey Boards
● Improves workplace safety
● Pump Room/Mud Pits
● The mat can custom fit to size
● Stairs & Walkways
● Easily installed – reducing labour intensive installation time and costs.
● Setback Area
Technical Parameters
Anti Slip Pad For Drilling Platform
Size:
ZP-175, ZP-205, ZP-275, ZP-375, Customize as drawings
Color:
Yellow, plays the role of safety warning
Material:
High wear resistance, oil resistance, Polyurethane Rubber+Carbon/Stainless Steel
Break Strength:
50 MPA
Elongation at Break:
550%
Hardness:
93 +/- 3 Shore A
Tearing Strength:
105.0 KN/m
Rebounding:
20%
Standard Size
| Order No. | Length | Width | Diameter of Center Bore | Thickness |
|---|---|---|---|---|
|
SU-ZP-175 |
Order No.
Length
Width
Diameter of Center Bore
Thickness
ZP-175
1690
1280
780
30
ZP-205
2000
1490
830
30
ZP-275
2100
1670
1050
30
ZP-375
2205
1810
1290
30
1.Good anti-slip effect made by high pure polyurethane raw materials.
2.Superior wear abrasive effect makes the slip mats long service life and safe usage.
3.Neatly arranged nails and PU protrusions make the rig mat not only anti-skid, but have good sewage discharge effect.
4.Nails made by Carbon/Stainless steel with good anti-corrosion and high strength can be used for long time.
5.Solid or hollow steel nails can be choose as different weight requirements on the oil drill platform.
6.The high temperature and anti-flammable PU raw materials helps for the extreme oil extraction environment.
7.Warning yellow color helps the construction site obviously so that can easily found and safe enough.
8.PU plate surface is smooth enough without water absorption so the oil and water or other liquid can be easily removed from the plate, so the construction places always clean and safe enough.
9.We have the most professional engineering and design or modify your drawing as the exactly requirements.
10.Accurate size as customers desire so that the anti-Slip Rotary Table Mat is easily installation.

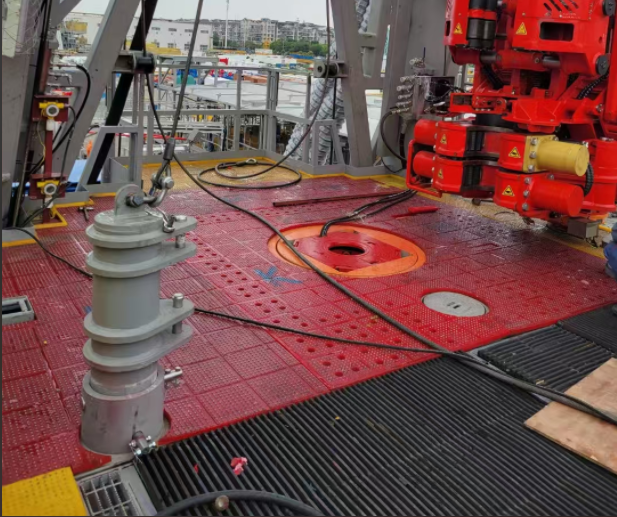

Application Scenarios
Ask For A Quick Quote
We will contact you within one working day. Please pay attention to your email.
Anti Slip Pad Video
Anti slip pad
Anti slip pad video
FAQ
Q
HOW TO BUILD SAFE WORKING ENVIRONMENT?
+
A
1. The protruding metal nails with certain height help workers feel the comfortable feeling and safe when walking on.
2. The polyurethane rubber protruding particles with better wear resistance make the utility model have excellent anti-skid performance and long service life. It can effectively reduce the damage to the rotary table and the drilling tool during the operation of the drilling rig.
3. Therefore, this polyurethane anti-skid pad has excellent anti-skid performance in the case of oil or water pollution and can drain oil and water pollution for drilling rig turntables and platforms in oil fields, mining and engineering construction.
Q
HOW TO ACHIEVE LIQUID DISCHARGE?
+
A
1. There are square areas enclosed by many vertical and horizontal drainage grooves the drainage groove on the main mat, protruding rubber particles, and metal nails embedded on the protruding surface square area.
2. The rubber particles and metal nails that are regularly staggered can not only effectively prevent slipping, but also make the operator stand on the pad without discomfort.
3. Liquid can be discharged from the space of nails and particles and then flow into the drainage grooves, last removed to the specific place without flow into river or sea. So the construction site is clean and firm.
Since the surface of the anti-skid pad has vertical and horizontal drainage grooves, oil or water can flow into the grooves and be discharged in time, reducing the influence of oil or water on the anti-skid effect.
